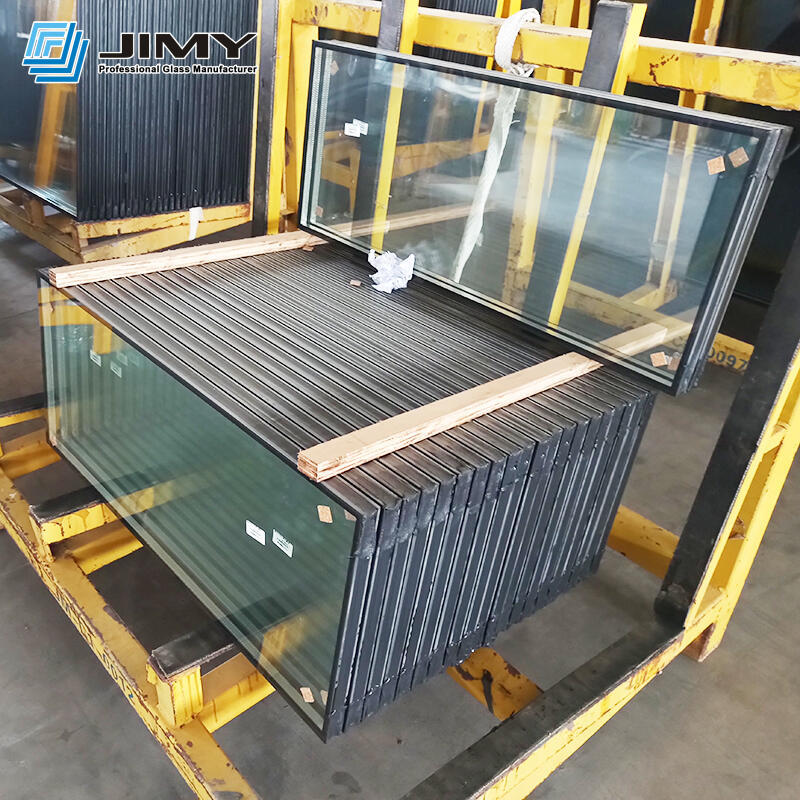

24mm thermal insulated glass 6+12A+6mm double glazing unit

Specifications

Product: low e tempered insulated glass
Composition: 6mm low e tempered glass+12mm spacer+6mm clear tempered glass
Size: custom size, cut to customer's demand size
Color: custom color
Spacer filled: dry air or argon
Applications: window. partition wall, curtain wall, canopy
Sample: available

24mm Double Glazing Glass

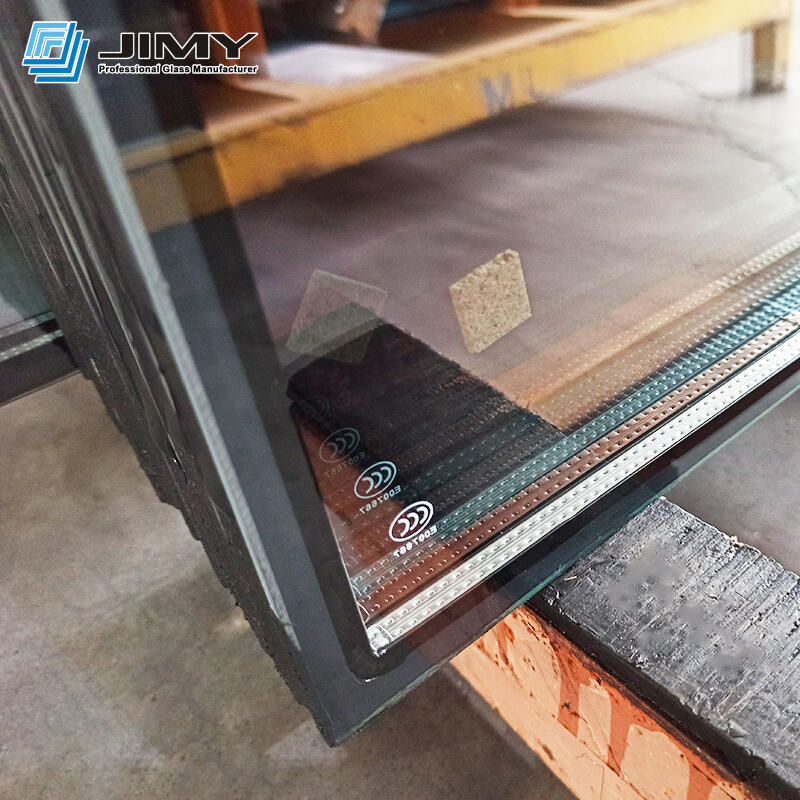

24mm insulated double glazing, also named double glazed panels,or double glazed units, it’s a hermetically sealed multi-glass combination consisiting two panes 6mm tempered glass (usually is one pane of low e glass and one pane of clear glass) separated by a 12mm spacer filled with high efficient desiccant .To ensure the sealing effect,first sealing finished by polysulfide adhesive and second by strucural sealnt.The most important function of insulated glass is reducing thermal loss,achieve lower energy consumption and good transparency.

Features

Thermal properties:
Excellent thermal insulation performance and the ideal energy efficient building material. Glass has 27 times higher thermal conductivity than air.The air gap between double glazed units can take advantage of the low thermal conductivity inside to decrease thermal conductivity.

Noise insulation:
Insulated glass can reduce noise by 27-50 decibels, and 80 dB of traffic noise outside can be decreased to only 50 dBs to indoor. Insulated glass is also one kind of acoustic glass products.

Dew free:
Excellent anti-dew performance under low temperature. Because the inner glass that is in contact with the indoor air is affected by the air barrier, even if the outer layer contact is low, there is no condensation on the glass surface due to the temperature difference.

Light weight:
Under the same effect of thermal insulation,insulating glass can substitute for part of brick wall or concrete wall to reduce the self-weight of buildings,simplify the building structure and increase daylighting area and enhance indoor confort level.

Long lifetime:
Insulating glass warranty time is 10 years,in most cases,the insulating lifetime can reach 20 years or even same lifetime as the building itself.

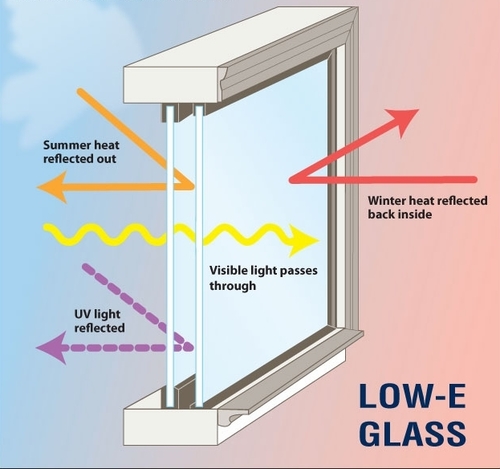

How Low-E Works

Low-E glass filters long-wave radiation from the Sun. This reduces solar heat gain from the Sun in the summer helping to keep your home cooler. During the summer where windows are exposed to direct radiation, Low-E coated glass blocks unwanted ultraviolet radiation and reflects away the long-wave infrared radiation that can add heat to the inside of your home.

Low-E glass takes on a new responsibility in winter months. It lets warm solar rays into your home while blocking the heat inside of your home from getting out. In cold weather, you spend your energy dollars generating long-wave radiation, as in heat from a furnace. This heat moves toward your cooler objects such as windows. But Low-E glass acts like a mirror, reflecting it back inside to help keep your home more comfortable.

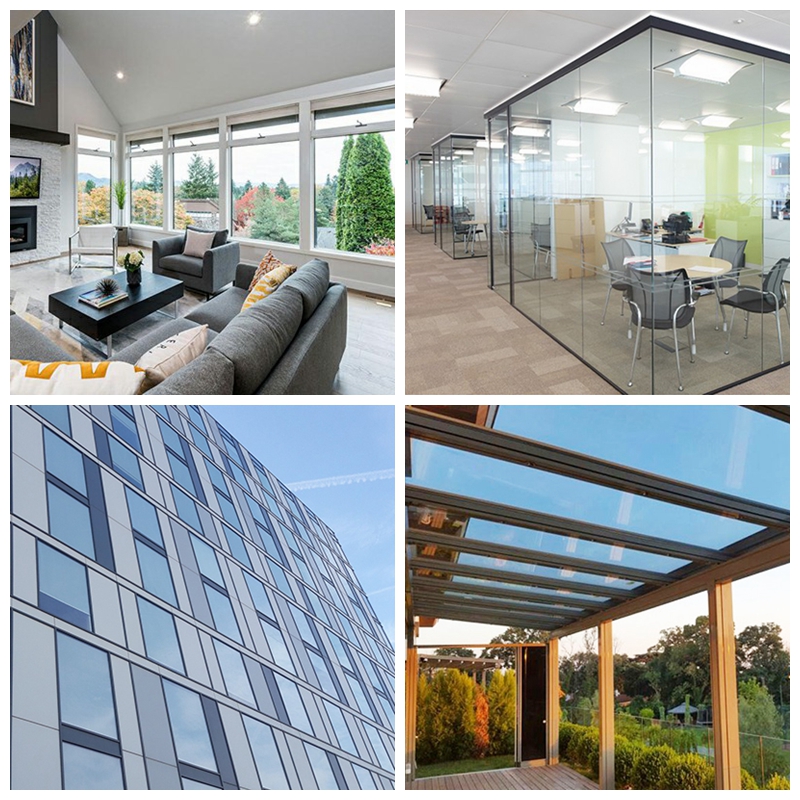

Applications

Glass window and door

Office or house partition wall

Glass roof and canopy

Building curtain wall and facade
